AFM-Raman Spectroscopy

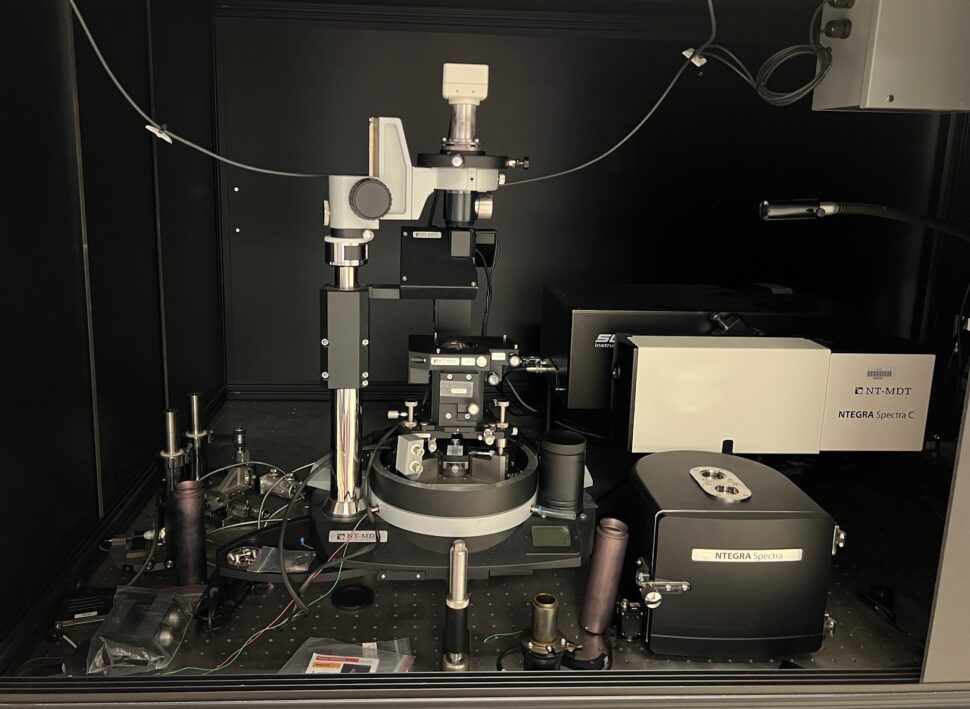

The Integra Spectra II (NT-MDT) instrument combines general purpose AFM with Raman confocal spectrometer in up-right configuration. It allows running most of the AFM modes, including band excitation enabled techniques, as well as collect Raman spectra from corresponding areas.
Specifications
- Sample size 12×12 mm
- Scan range (80×80 um)
- Z height limit (<10 µm)
- 532 nm laser with up to 2mW power
Applications
Material Science
Functional materials
Biological systems
Polymers and soft mater
Equipment
Integra Spectra II (NT-MDT)
References
A. Belianinov, A. V. Ievlev, M. Lorenz, N. Borodinov, B. Doughty, S. V. Kalinin, F. M. Fernández, and O. S. Ovchinnikova, Correlated Materials Characterization via Multimodal Chemical and Functional Imaging. ACS Nano 12, 11798-11818 (2018). https://doi.org/10.1021/acsnano.8b07292
